JM Impingement Mist Nozzle

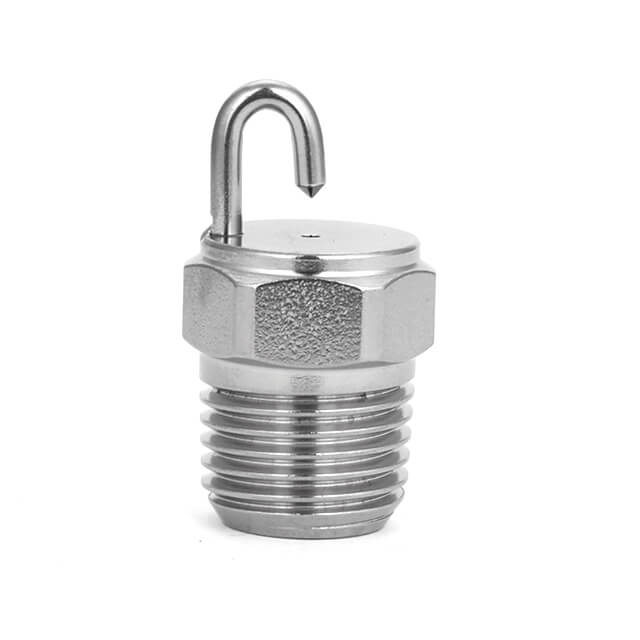

Project Description JM Impingement Mist NozzleThe JM Impingement Mist Nozzle can be used for urban landscape misting spraying. Sorry, your browser doesn't support embedded videos.Spray Characteristics 1. Finest fog of any direct pressure nozzle 2. Spray pattern: Cone-shaped fog 3. Flow rate: 0.043 to 5.34 L/m 4. Spray Angle: 90°. For best 90° pattern operate nozzle at or above 4 bar Design Features of JM Impingement  Mist Nozzle: High-energy efficiency One-piece, compact construction No whirl vances or internal parts 1/8″ or 1/4″ male connection 100-mesh screen, 20 micron paper filter or 70 micron polypropylence filter optional Optional welded pin and optional safety wire hole Performance Data of JM Impingement  Mist Nozzle: Nozzle No. K Factor  Capacity (L/min) Bar Approx. Orifice Dia (mm) Approx. Cov. D (mm) Approx. Spray. Height (mm) Pipe Size Dim (mm) Wt. (g) Metal 2 bar 5 bar 20 bar 70 bar A B JM6 0.0137 0.031 0.061 0.114 0.152 203 103 1/8 19.1 11.1 7 JM8 0.0259 0.058 0.116 0.217 0.203 254 127 JM10 0.0387 0.087 0.173 0.324 0.254 254 127 JM12 0.0524 0.117 0.234 0.439 0.305 254 127 JM15 0.0843 0.119 0.189 0.377 0.705 0.381 254 127 JM20 0.153 0.216 0.341 0.683 1.28 0.508 310 155 1/4 24.6 14.2 JM24 0.228 0.322 0.510 1.02 1.91 0.610 400 200 JM28 0.296 0.419 0.662 1.32 2.48 0.711 460 230 JM32 0.410 0.902 0.917 1.83 3.43 0.813 560 280 JM40 0.638 0.902 1.43 2.85 5.34 1.02 610 305 Flow Rate(l/min): K√bar Standard Materials: Brass, 303 Stainless Steel, and 316 Stainless Steel Spray angle performance varies with pressure. Contact CYCO for specific data on critical applications. SPECIFICATION SHEETinquiry to our expert (nozzles supplier & factory) Your Email* Your Description ×
